Product Description:

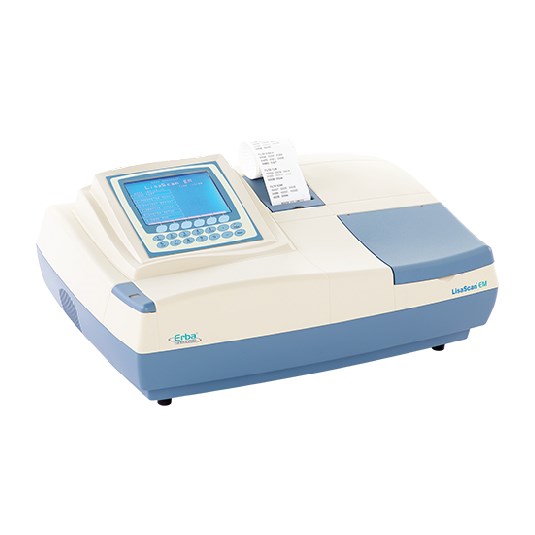

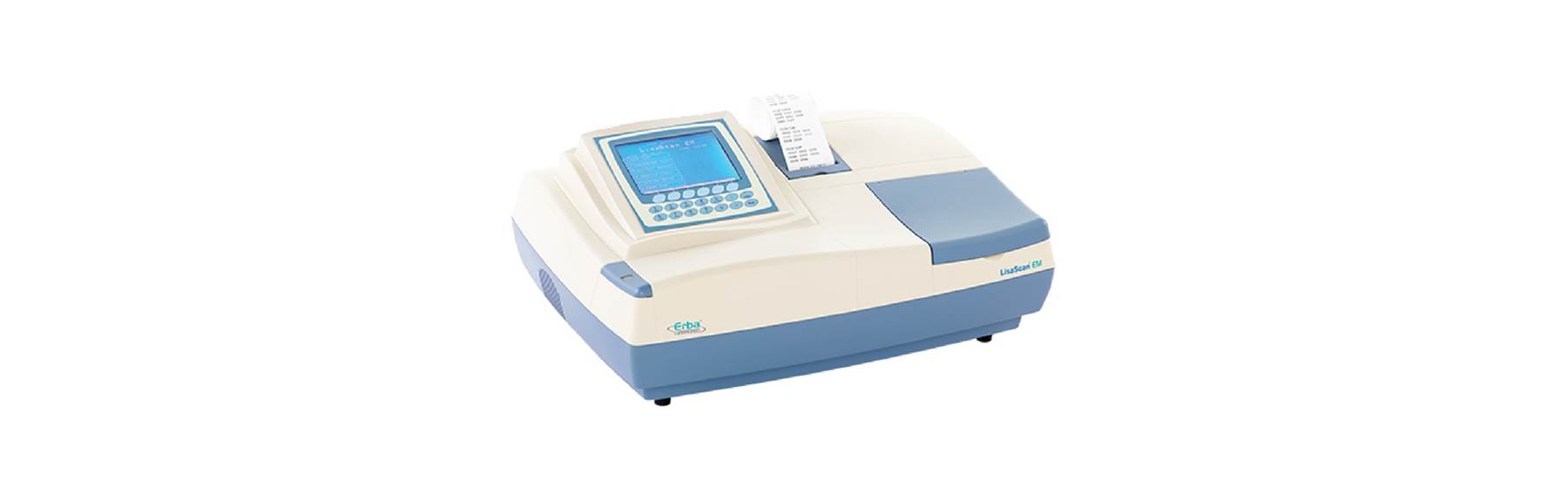

The LisaScan EM Microplate Reader with LED Light Source is an economical, compact and versatile single channel ELISA reader which can be adapted to various ELISA applications.
Product Features:
- Wavelength Range: 400 to 700 nm with a dynamic measurement range of 0.0 to 4.0 O.D
- 100 user-programmable test storage
- Inbuilt thermal printer for reports & graphs
- Auto self-check on start-up & external printer connectivity
- Compatible to various plate geometrics-96 well microplates ( Flat, U & V bottom)
- Wavelength selection: Monochromatic, bi-chromatic & multi-chromatic*
- Reading time 25 sec. for single wavelength
- User-friendly inbuilt operation software with 7000 sample test results storage
- User interface: LED Backlight with Resistive Touch Screen
- Computer linked ELISA data management software - Eli-LIMS*
- CE marked
- Inbuilt shaking facility, Three Linear Speeds - Low, Medium and Fast
- Reports can be printed using internal thermal or external printer
- No need of manual calculations and documentation
- Documentation ease – Reports can even be stored using optional Eli-LIMS software
- Computer can be connected
- Extensive ELISA data management
Product Applications: ELISA
System type: Open System
Plate types: 96 well plates
Wells Type: U, V and Flat bottom wells
Operating Modes:
- Absorbance
- Quantitative
- Qualitative
- Semi-Quantitative
- Kinetic Mode
Shaking Modes: Three Linear Speeds - Low, Medium and Fast. Time duration can be set
Wavelength Selection:
- Monochromatic
- Bi-Chromatic
- Multi-Chromatic* (Maximum 4)
Calculation Modes:
- Non-linear Standard
- Cut-off
- Index Formula
- Blank Subtraction
- Linear Regression
- Point to Point
- Cubic Spline
- Linear – Log
- Blank, Control, Assay Validation equations with facility of accurate flagging.
- Multi-standard calibration as well as cut-of equation programmable in the same test.
Blank Options:
-
Blank, Control, Assay Validation equation against Air/Water, Single Well, Multi Well, Plate, Column, Column Mean, Row, Row Mean
Number of programmable standards / calibrators: Up to 10 standards /test Storage/ display/ printing of multi standard curves and cut-off equations for all parameters
Test Programs: 100 totally “open” Test Programs
Photometer:
- Measuring system: Single Si photodiode.
- Lamp Source: LED with Lamp saver function
- Wavelength Range: 400 to800nm
- Standard Filters: 405 nm, 450 nm, 492 nm, 630 nm (Optional two filters 578 nm, 700 nm), 10 nm Band Pass
- Dynamic Range: 0.0 ~4.0 OD
- Photometric accuracy: 0.0 to 3.5 ≤ 1% at 450 nm
- Photometric resolution: 0.0001ODLinearity: Up to 3.5 OD ≤ 1% at 450 nm
- Drift : < 0.0001 (@450nm (in 12 hours)
Measurement Time:
For Single Wavelength: 25 seconds
Display: LED Backlight with Resistive Touch Screen
PC Communication: USB Based
Protocol compatible with Eli-LIMS and TNW
Built-in Thermal Printer: Built in High resolution, 384 dots per line, thermal Type with full graphics facility printer and option for connecting External Parallel Printer (or USB Printer using External Adaptor).
Computer interfacing Software: Windows Based Software Eli-LIMS with data managemen Optional Windows Based Software with data management capabilities to store patient results, store/display calibration curve /QC curves.
Reports on internal and external printers: Report generation for last 7000 Sample’s is viewed/printed/stored.
Lab name in Print-out
Lab name in Display
Collated reports
Print-out of Normal Range along with the result (on external printer only).
Graphs can be printed on Thermal Printer
Sorted by:
Date
I.D.
Both by Date & I.D.
Test
Plate ID
Operating Temperature: 20˚ C to 40˚ C
Storage Temperature: 5°C to 45°C Humidity: Max. 80% RH, non- condensing
Power Supply: 16 V - 24.5 V DC using External Auto ranging SMPS adapter
115/230VAC ±10%, 50/60Hz., Max. 90 Watt. (CE & UL certified)
Dimension: 502 mm X 369 mm X 216 mm
Weight: 10 Kg
